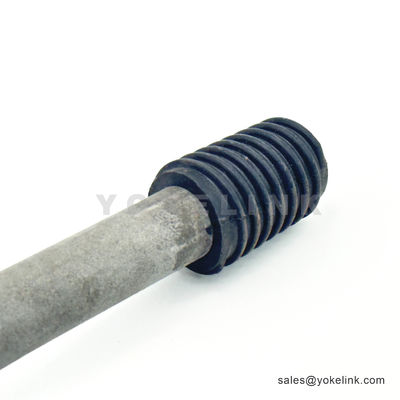

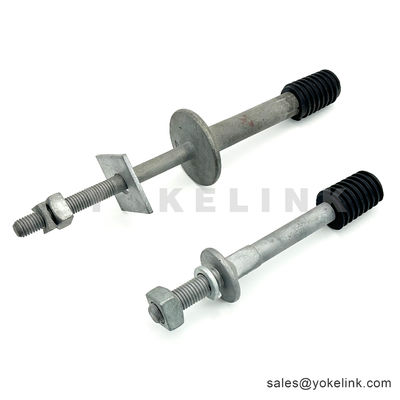

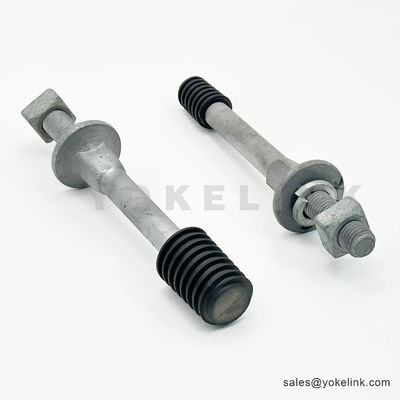

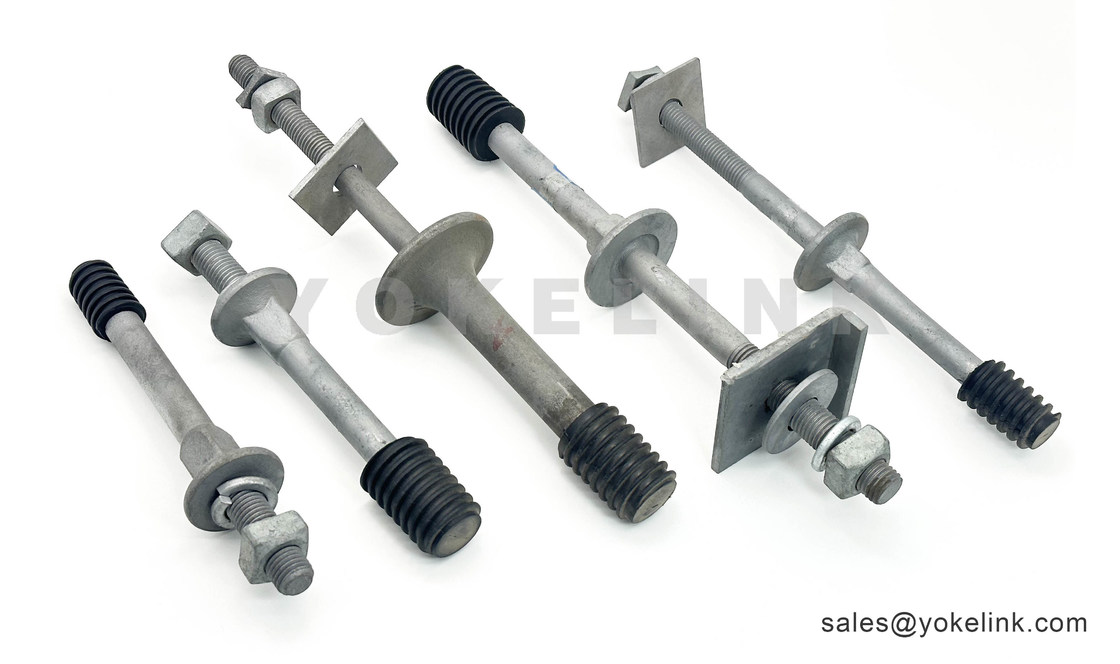

Name: Crossarm Insulator Pin Pole Line Hardware With 1"Nylon Thread Insulator Pin
Brand: Ningbo YokeLink Machinery Co., Limited
SKU: OEM
Price: 2.00 USD
Availability: InStock

Aperçu Produits Poleline hardware & Fasteners

Crossarm Insulator Pin Pole Line Hardware With 1"Nylon Thread Insulator Pin

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Yokelink
Numéro de modèle:	OEM

Conditions de paiement et expédition:

Quantité de commande min:	1000 pièces
Prix:	$1.0-$3.0
Détails d'emballage:	Carton et palette
Délai de livraison:	35 à 40 jours
Conditions de paiement:	LC, T/T
Capacité d'approvisionnement:	10000 pièces par mois

Contactez

Description de produit détaillée

Matériel:	Acier au carbone	Finition:	Galvanisé à chaud

Crossarm Insulator Pin

The crossarm pin is a vital piece in electrical infrastructure, boasting several key features. Crafted from high-strength materials like durable steel or robust aluminum alloys, it ensures exceptional mechanical stability, withstanding heavy loads from conductors and adverse environmental impacts. Its precisely engineered design guarantees a snug fit with crossarms and insulators, facilitating seamless installation and preventing loosening over time. Resistant to corrosion and wear, it performs reliably in diverse weather conditions, from intense heat to freezing cold. With excellent dimensional accuracy, it contributes to the overall integrity and safety of the electrical system, offering a long service life with minimal maintenance.

Features

Cantilever load rating is 2,500 lbs. based on ANSI/IEEE 10 degree deflection criterea

Minimum thread length of shank is 2-1/2"

Galvanized steel per ASTM A-153

Specification

Crossarm Insulator Pin Application

Crossarm pins have several important applications in electrical and telecommunication systems:

Power Distribution Lines: In overhead power distribution networks, crossarm pins are used to support insulators. These insulators, in turn, hold the electrical conductors in place. This helps maintain the electrical integrity of the system and prevents accidental contact between the live wires and the pole structure.

Telecommunication Lines: For overhead telephone and data communication lines, crossarm pins serve a similar function. They support the insulators that hold the communication cables in position, keeping them elevated and separated from each other.

contact system (OCS). They assist in holding the insulators and conductors that supply power to the trains, ensuring a continuous and stable power supply for locomotive operation.

Buy Crossarm Insulator Pin From Yokelink

The Yokelink brand of insulator hardware is a comprehensive offering that includes pins and brackets for crossarm, pole top and side mounting of pin or post type insulators. Also included are line post studs, used with post type insulators. All products are designed and manufactured in compliance with applicable electric utility industry standards.
